Garage Channel Drainage Pack 3 Metres Plastic Grate A15

Garage Channel Drainage Pack 3 Metres Plastic Grate A15

This DekDrain A15 Channel Drainage Garage Pack includes:

• 3 x One Metre Lengths of DekDrain A15 Channel with Plastic Grating
• 2 x End Caps
• 1 x Outlet Connector

DekDrain A15 channel drainage system a plastic body with a plastic slotted grate, making it lightweight yet also strong. The slotted linear bar grating design is unique, modern and stylish perfect for many A15 loading applications including paving, gardens and pedestrian areas. This channel drain features a simple & secure socket and spigot slide-in connection, allowing quick and easy installation for DIY projects and professionals, no screws needed!

The end caps can be used to close off the ends of the A15 DekDrain channel. They are quick and easy to install as each end cap fits with a click so you know it has fitted properly. The outlet connector comes in two pieces, simply connect the two pieces together and then clip into place on the bottom of the channel. The outlet creates a connection to allow a 110mm socket connection.

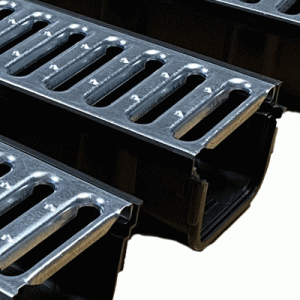

Each length of drainage channel measures 1 metre, however for applications that require a shorter length there is a cutting point at 500mm. To go around corners and change path of your channel drain in up to four different directions you can purchase a Corner Quad with a Plastic Grate, or you have the tools you can simply cut your channel drain at your desired angle instead. If you prefer a galvanised finish, take a look at our A15 DekDrain Galvanised Steel Channel Garage Pack.

Drainage Channel is often referred to as ACO Drain, Channel Drain, Trench Drain and Linear Drain. The main purpose of channel drain is help prevent flooding and overspills by discreetly using gravity to move surface water from one area to another. Channel drainage comes in many different sizes, styles and materials which are suitable for a wide range of light & heavy duty applications.

The maximum weight load for A15 class is 1.5 tonnes, meaning that an A15 loading on an ACO channel is suitable for pedestrians only. A15 is designed to be used for light domestic and landscaping projects, such as public footpath areas, patios, gardens, garage thresholds and light traffic areas. You can view our entire A15 channel drain range here.

DekDrain is certified to BS EN 1433 and manufactured by Deks Industries. Deks strive to provide user friendly and high quality channel drainage solutions across the globe. Their cost-effective, yet also innovative and stylish products prove to be a great hit with our customers for the right reasons!
